Voltum's Products

Part Five

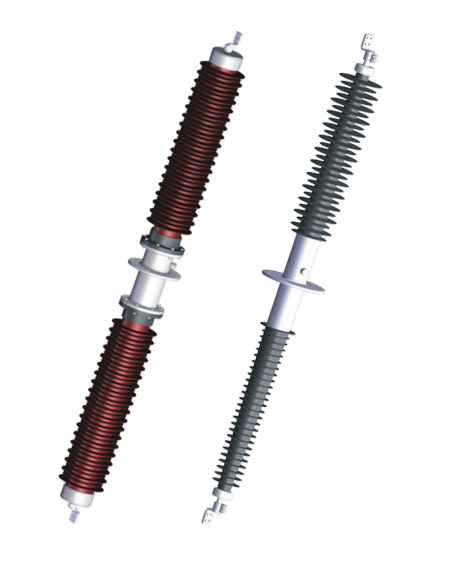

BRGWA: Wall Bushing

Wall Bushing is mainly used for high voltage couductors supplied by power stations and substation to pass through walls or floors. The dry type wall bushing is soild insulation which has the advantages of good pollution resistance,high reliability,no oil leakage and eveironmental pollution,small size and light weight.easy installation and free maintenance.

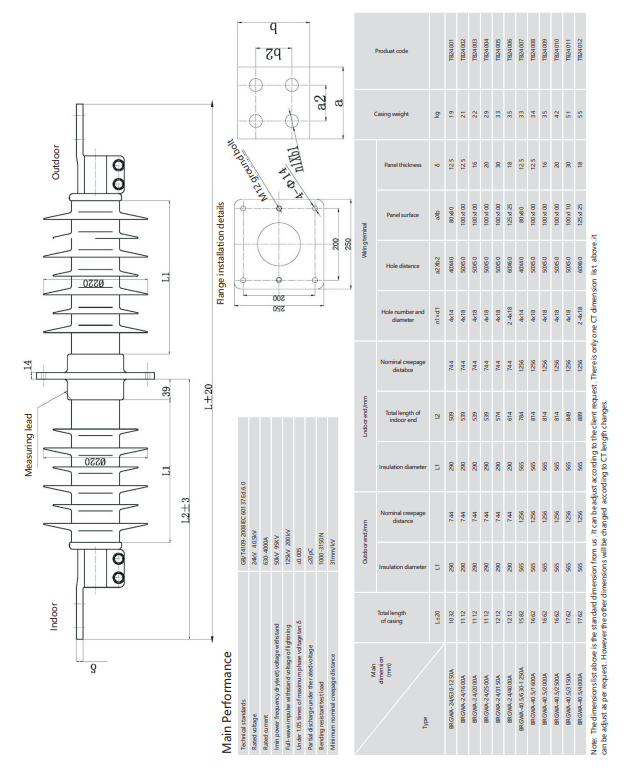

24kv-40.5kv Wall Bushing

72.5kv Wall Bushing

126KV Wall Bushing

252kv Wall Bushing

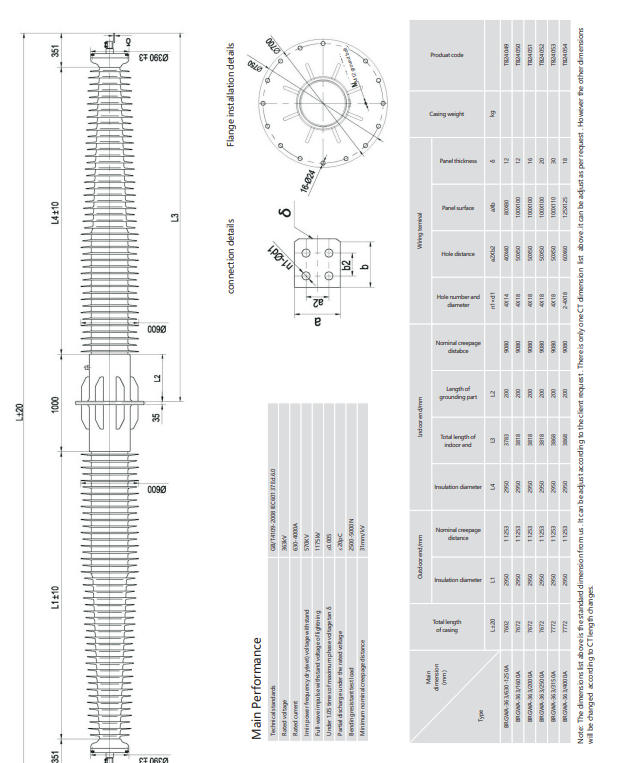

363kv Wall Bushing

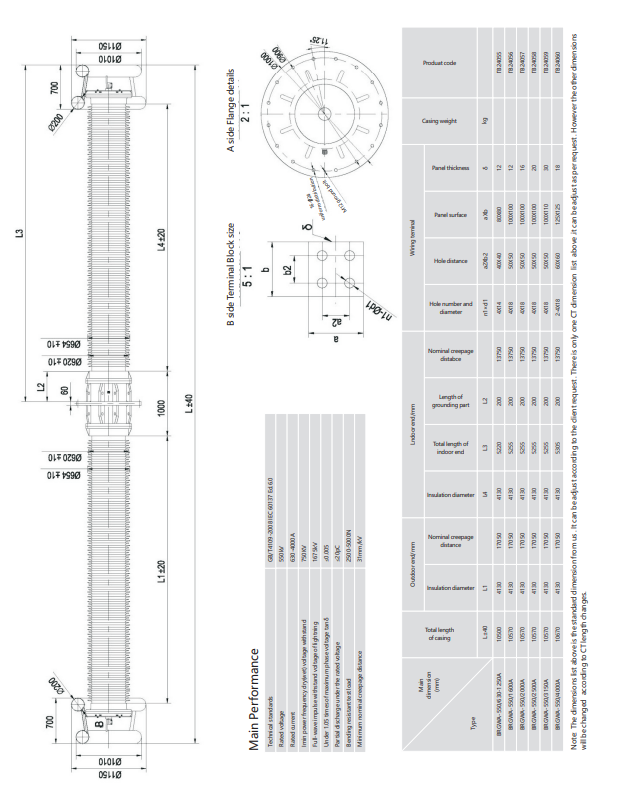

550kv Wall Bushing
