Resin Impregnated Synthetics (RIS)

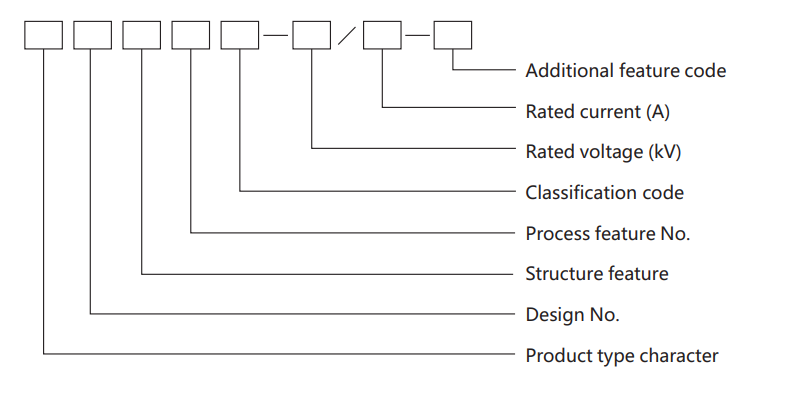

Description Of Product Type
BROAC(C)L-72.5/630
Means it is a oil –Air transformer bushing with composite sleeve draw lead connected ,can apply for current
transformer. with the voltage 72.5KV ,current 630A.
Operation Condition
• ≤ – ~+ Altitude 1000m
• Ambient temperature: 45℃ 40℃
• Mounting angle: Any
• Without chemical gas, extreme contamination and salt fog area
Product Type

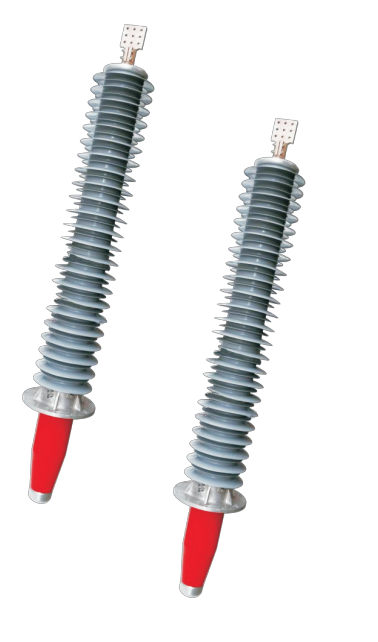

1. BROAC: Oil-Air Transformer bushing with composite sleeve
2. BROAP: Oil-Air Transformer bushing with porcelain sleeve
3. BROOO:Oil-Oil Transformer Bushing
4. BROSF: Oil –SF6 transformer bushing
5. BRGWA: Wall Bushing
6. BRGGC: GIS Bushing with composite sleeve
7. BRGGP: GIS Bushing with Procelain sleeve
Structure Feature No.
1. L: With CT
2. (Z): Bottom Connect
3. (C): Draw Lead
